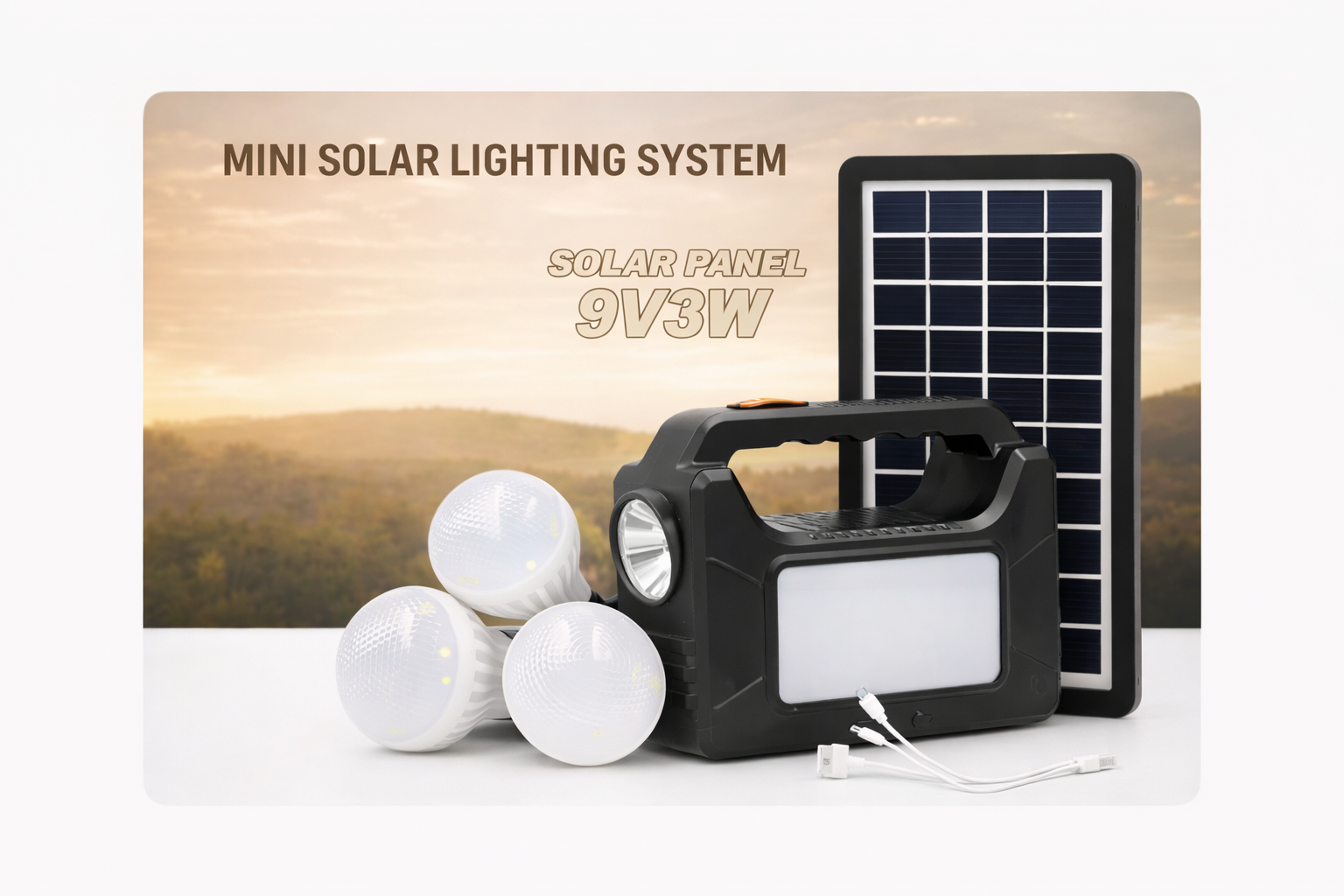

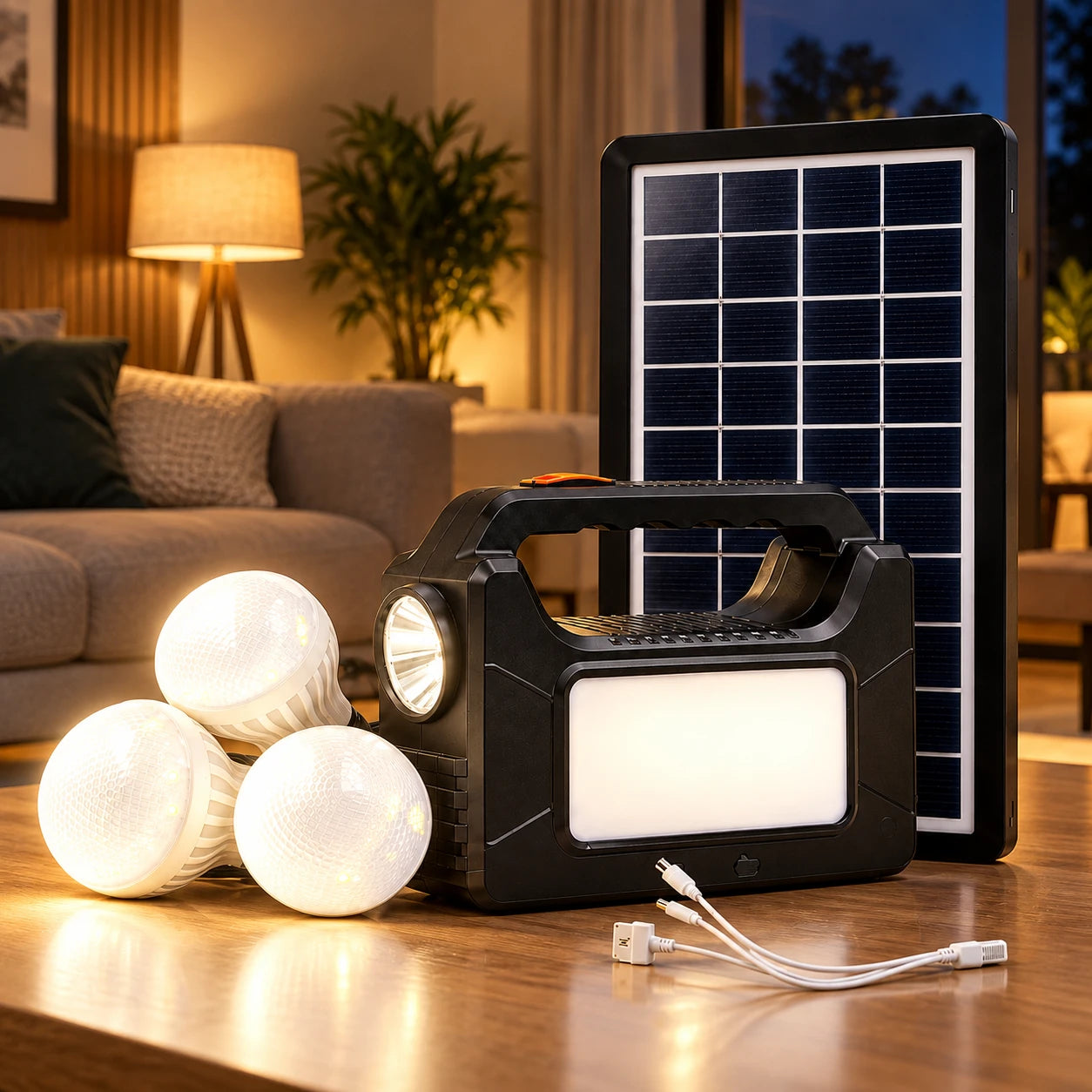

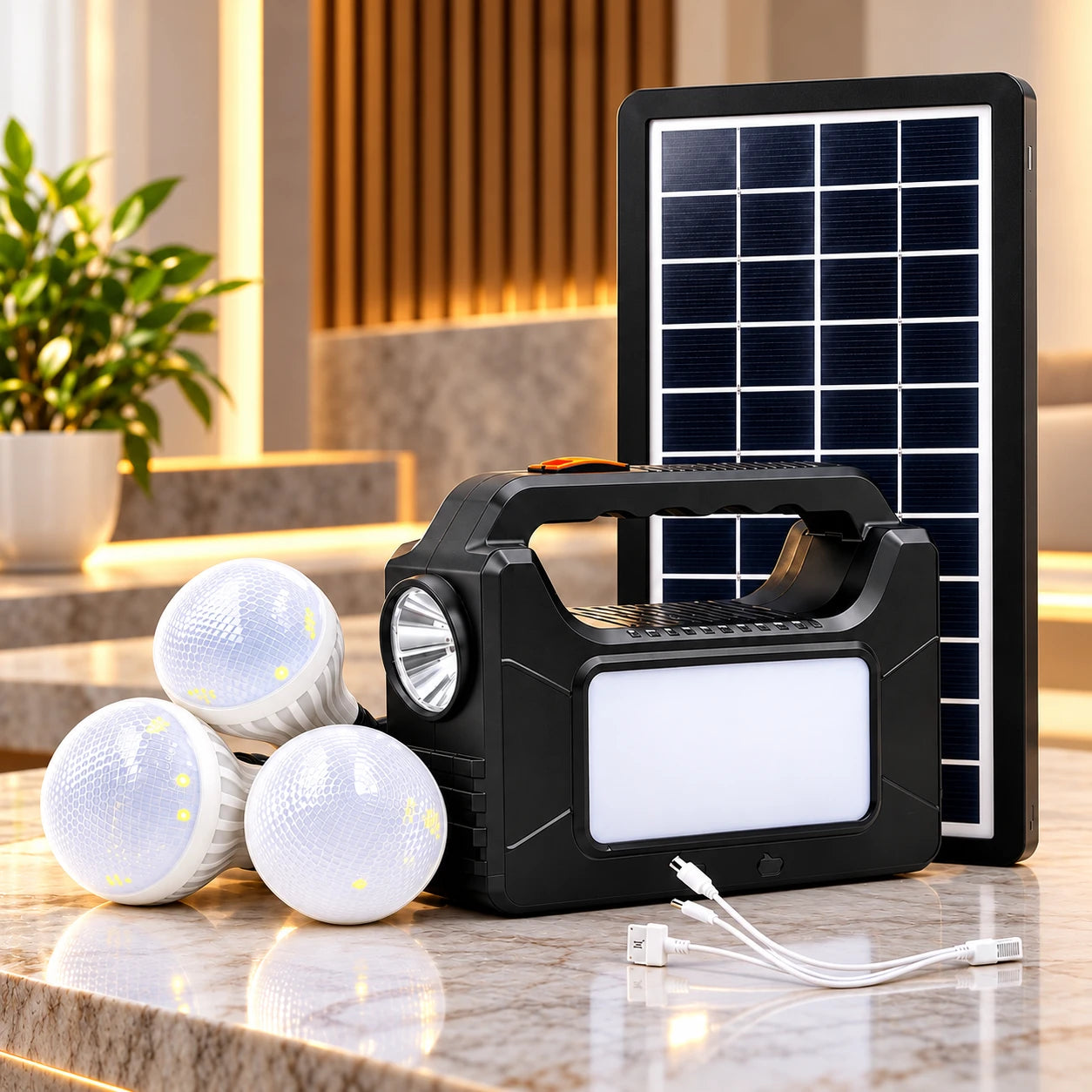

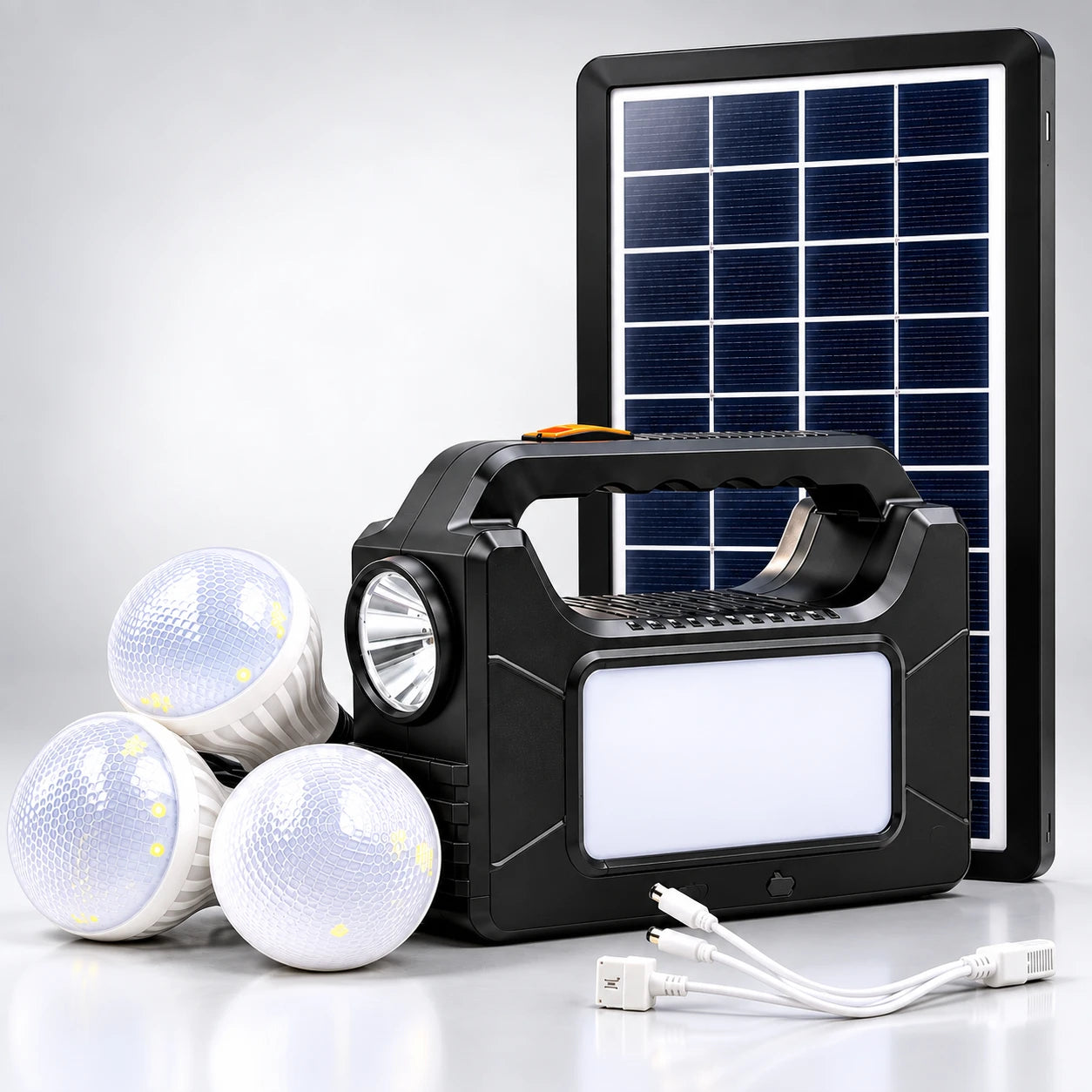

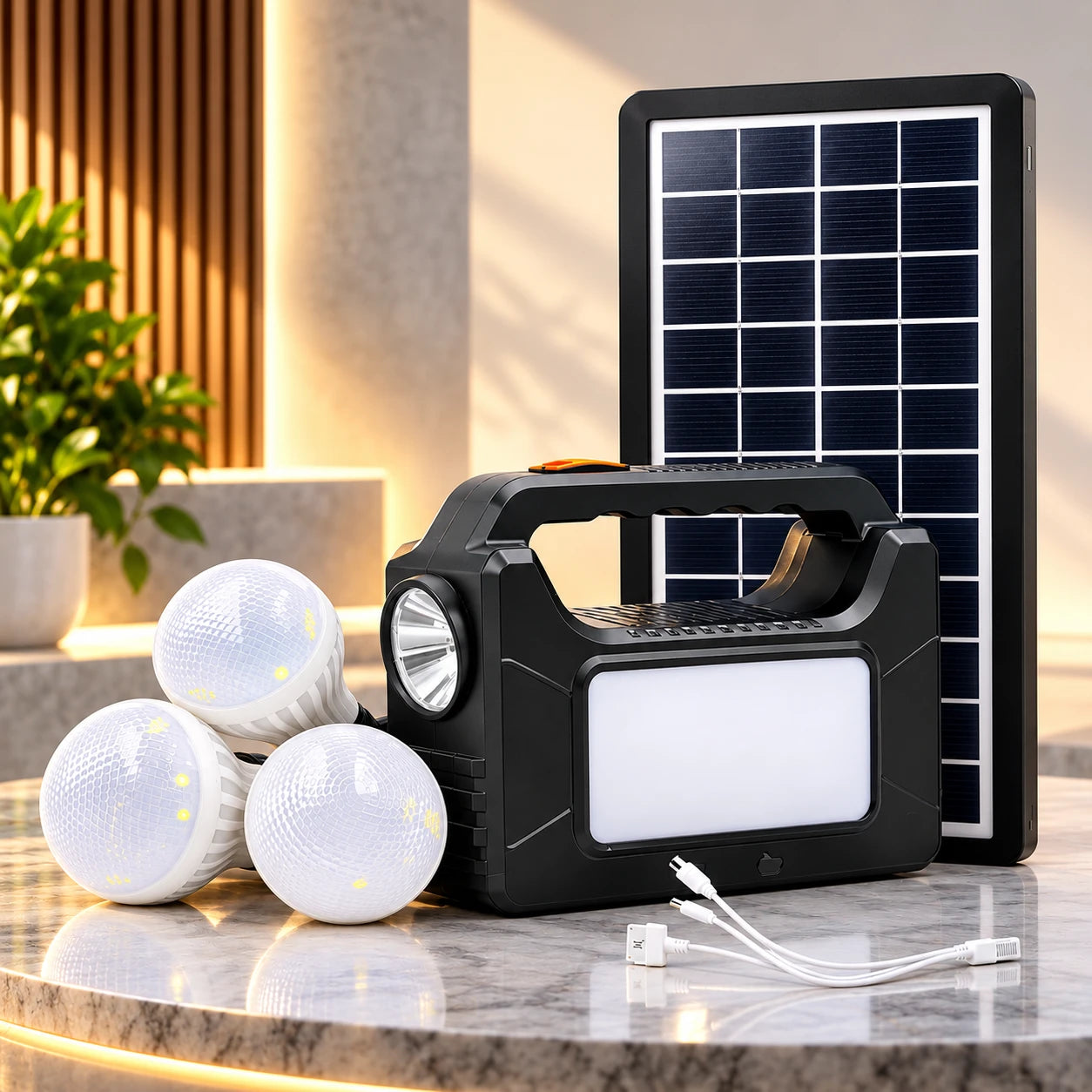

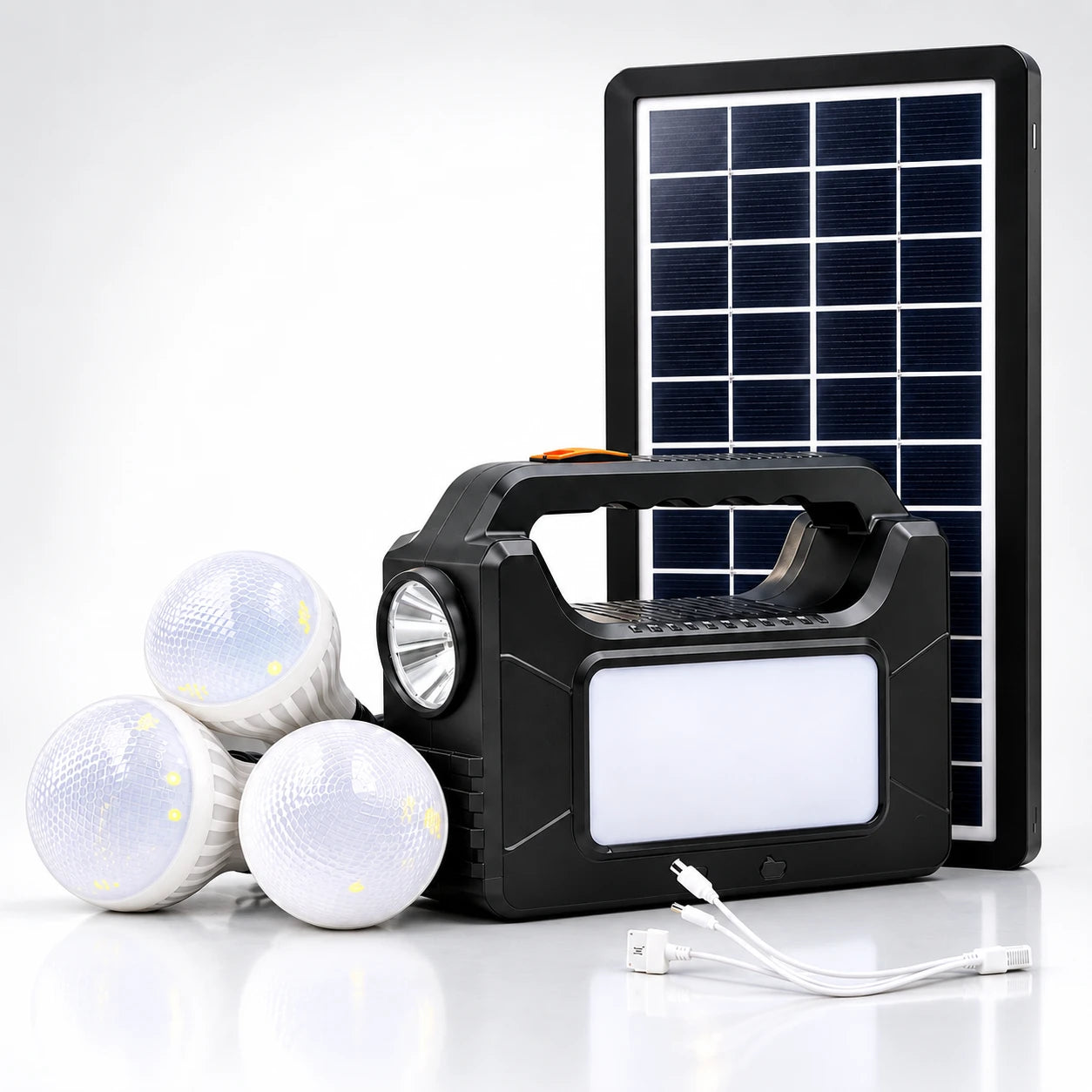

Portable Solar Lighting System – Technical Specifications

⚙️ General Information

• Product Type: Portable Solar Lighting Kit

• Application: Home backup, camping, outdoor, rural lighting, emergency use

• System Type: Off-grid DC solar system

• Installation: Plug & Play (No wiring required)

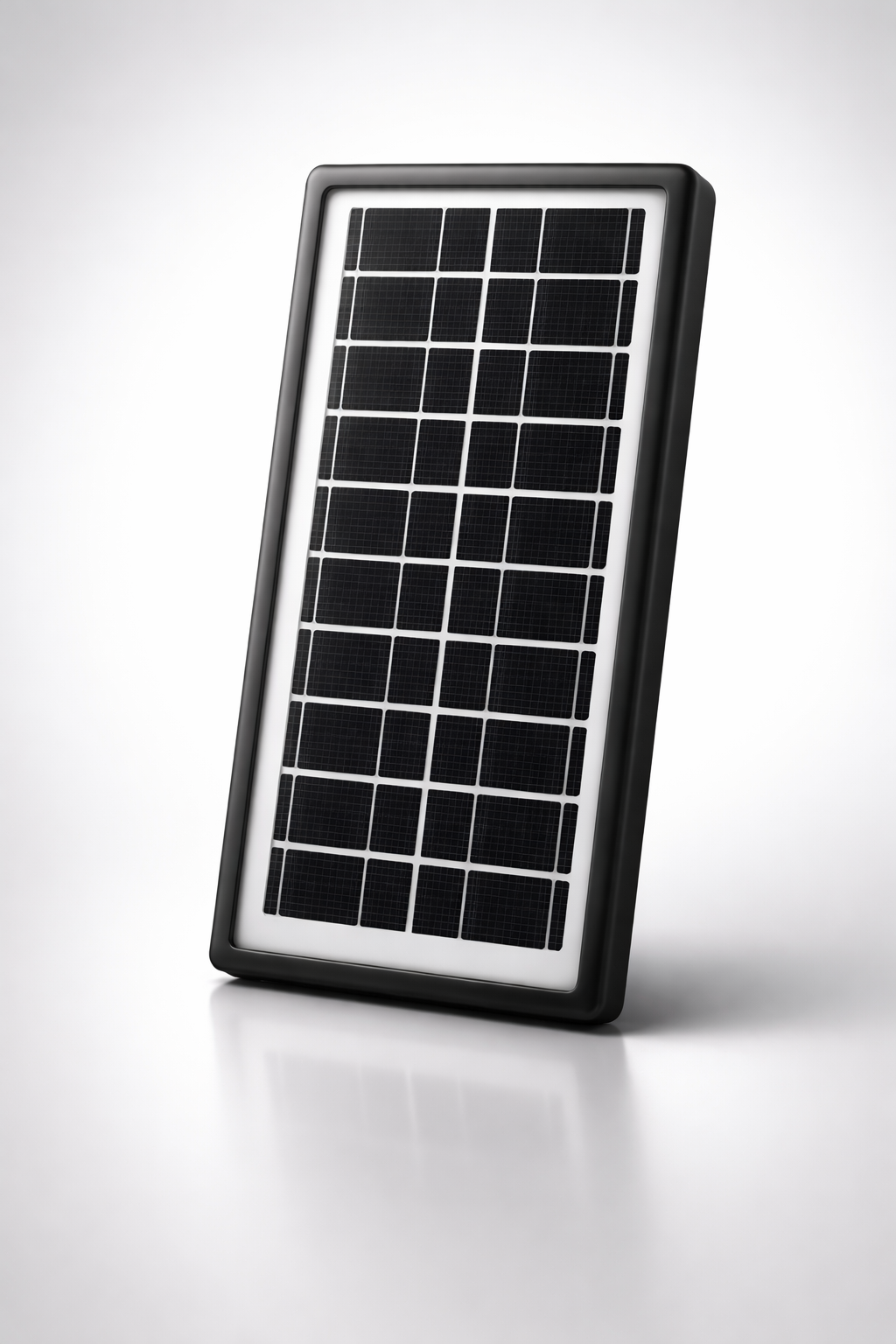

🔆 Solar Panel

• Type: Polycrystalline / Monocrystalline (model dependent)

• Power Output: 6W

• Voltage: 6V

• Lifespan: 5 years

• Cable Length: 3–5 meters

• Mounting: Portable / wall-mount compatible

• Efficiency: ~18–21%

🔋 Battery & Power Unit

• Battery Type: Lithium-ion / VRLA

• Battery Capacity: 3000mAh

• Output Voltage: DC 5V

• Charging Time (Solar): 6–8 hours (full sunlight)

• Backup Time:

  • 1 bulb: 8–10 hours

  • 2 bulbs: 5–6 hours

  • 3 bulbs: 3–4 hours

• Cycle Life: 500–1000 cycles

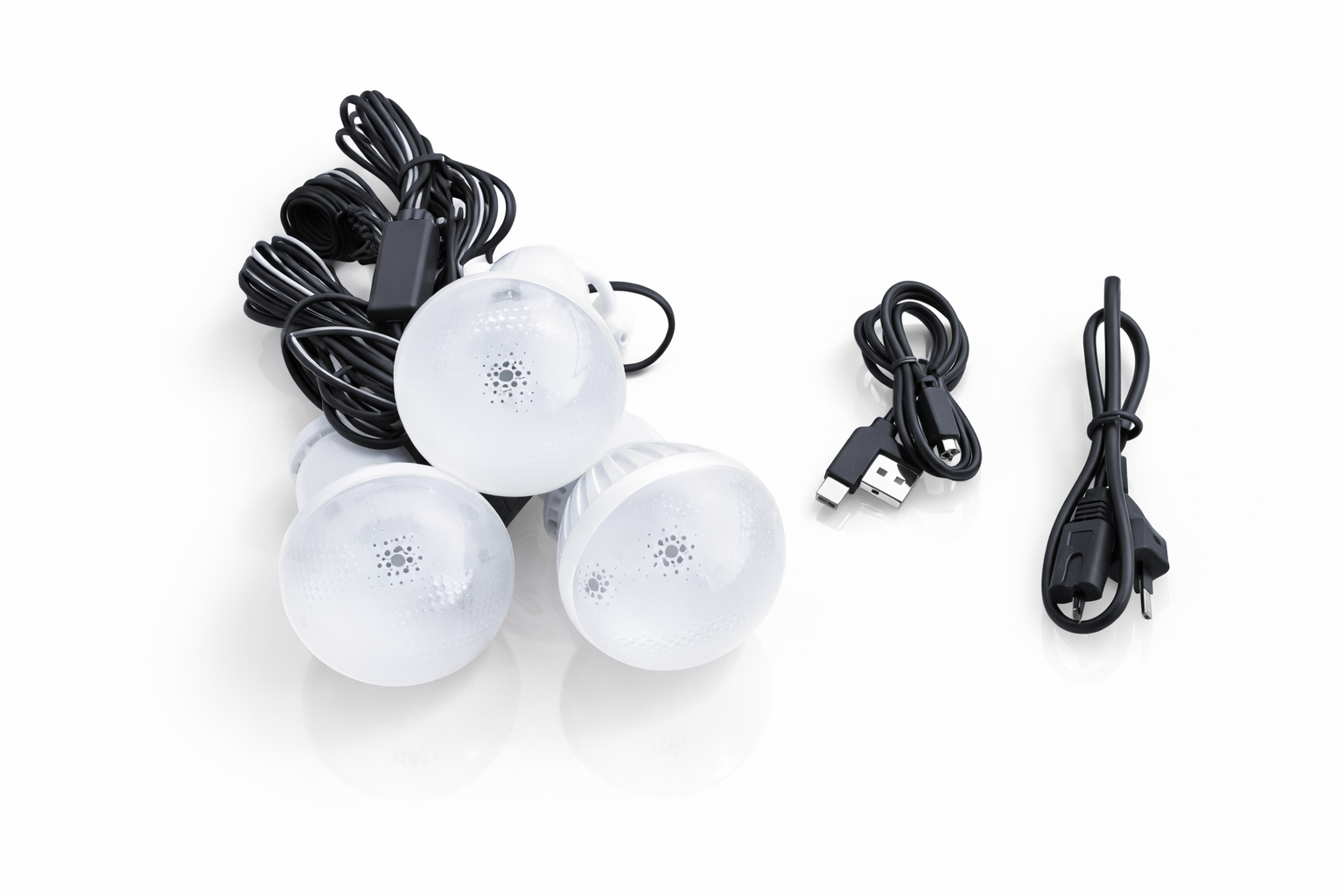

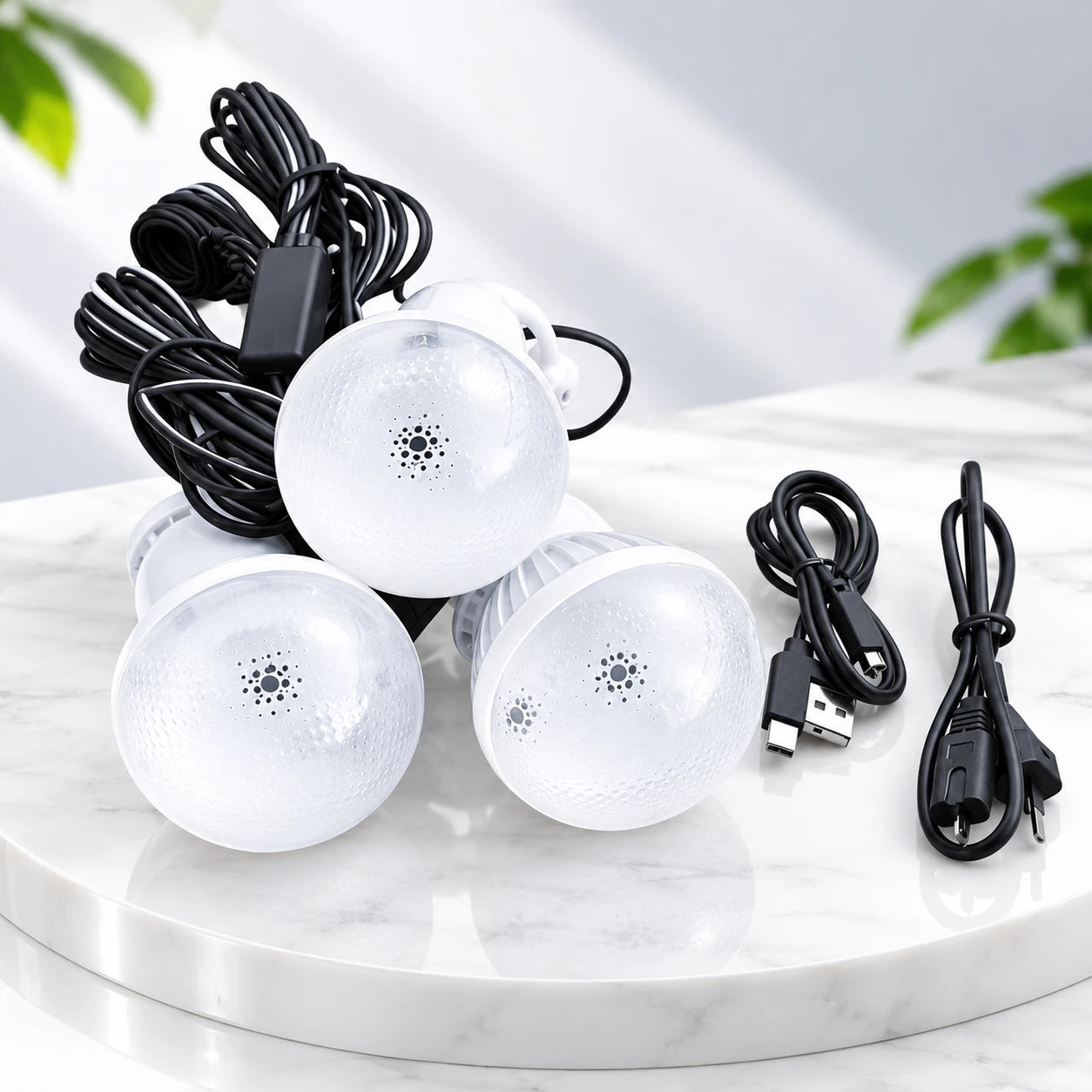

💡 LED Bulbs

• Quantity: 3 bulbs

• Power per Bulb: 3W –

• Brightness: 200–350 lumens per bulb

• Color Temperature: Cool White (6000K–6500K)

• Cable Length: 3–5 meters each

• Lifespan: 25,000–50,000 hours

🔌 Output & Ports

• USB Output: 5V (Mobile charging supported)

• DC Output Ports:  4 ports for bulbs

• Charging Input: Solar + optional AC charging

• Switch Type: Manual / Multi-level control

🔦 Additional Features

• Built-in LED torch / emergency light

• Overcharge & deep discharge protection

• Short circuit protection

• Portable handle design

• Battery level indicator

• Multi-device charging support

🌡️ Build & Design

• Material: ABS durable plastic

• Color: Multi color

• Water Resistance: IPX3 (splash resistant)

• Operating Temperature: 0°C to 50°C

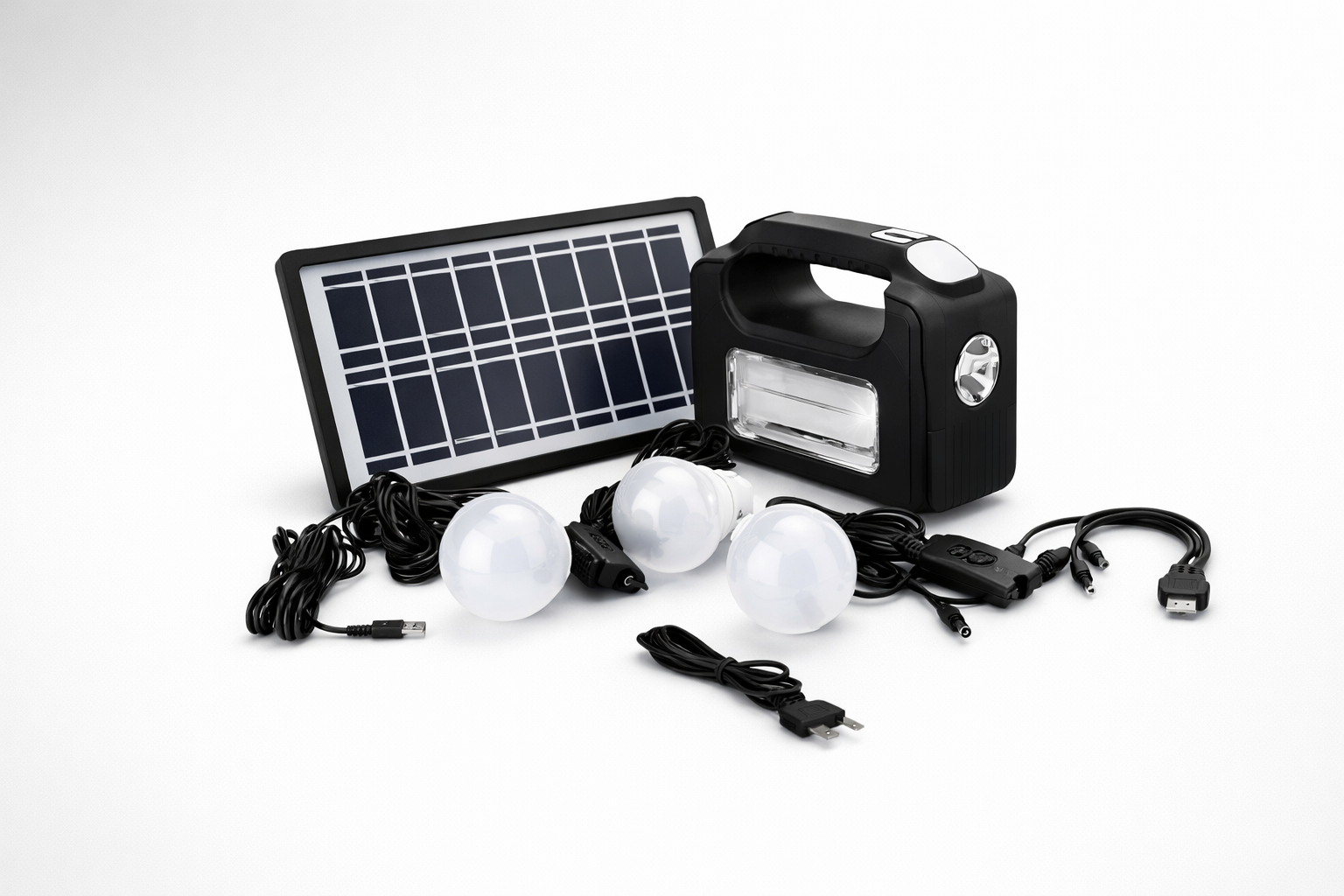

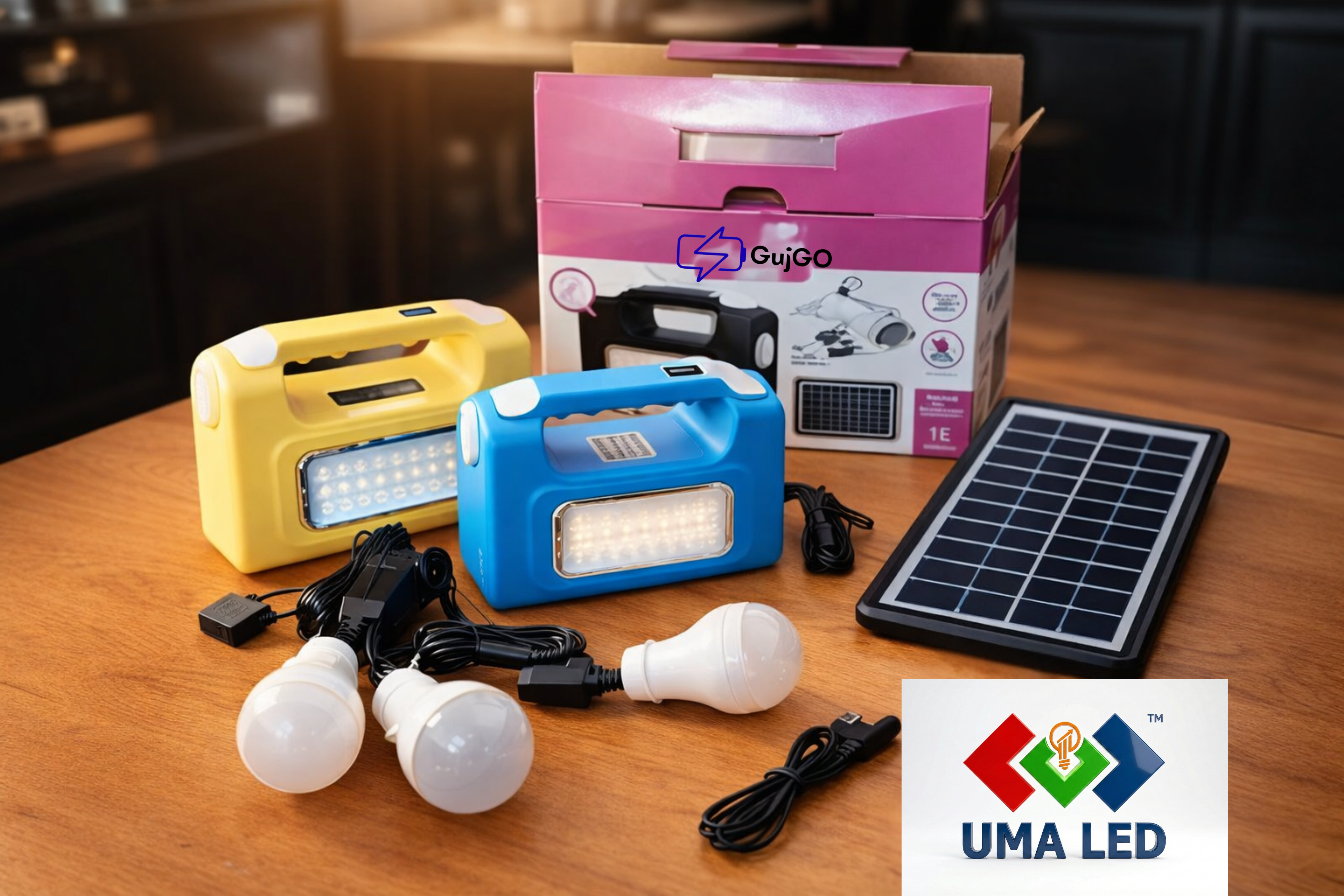

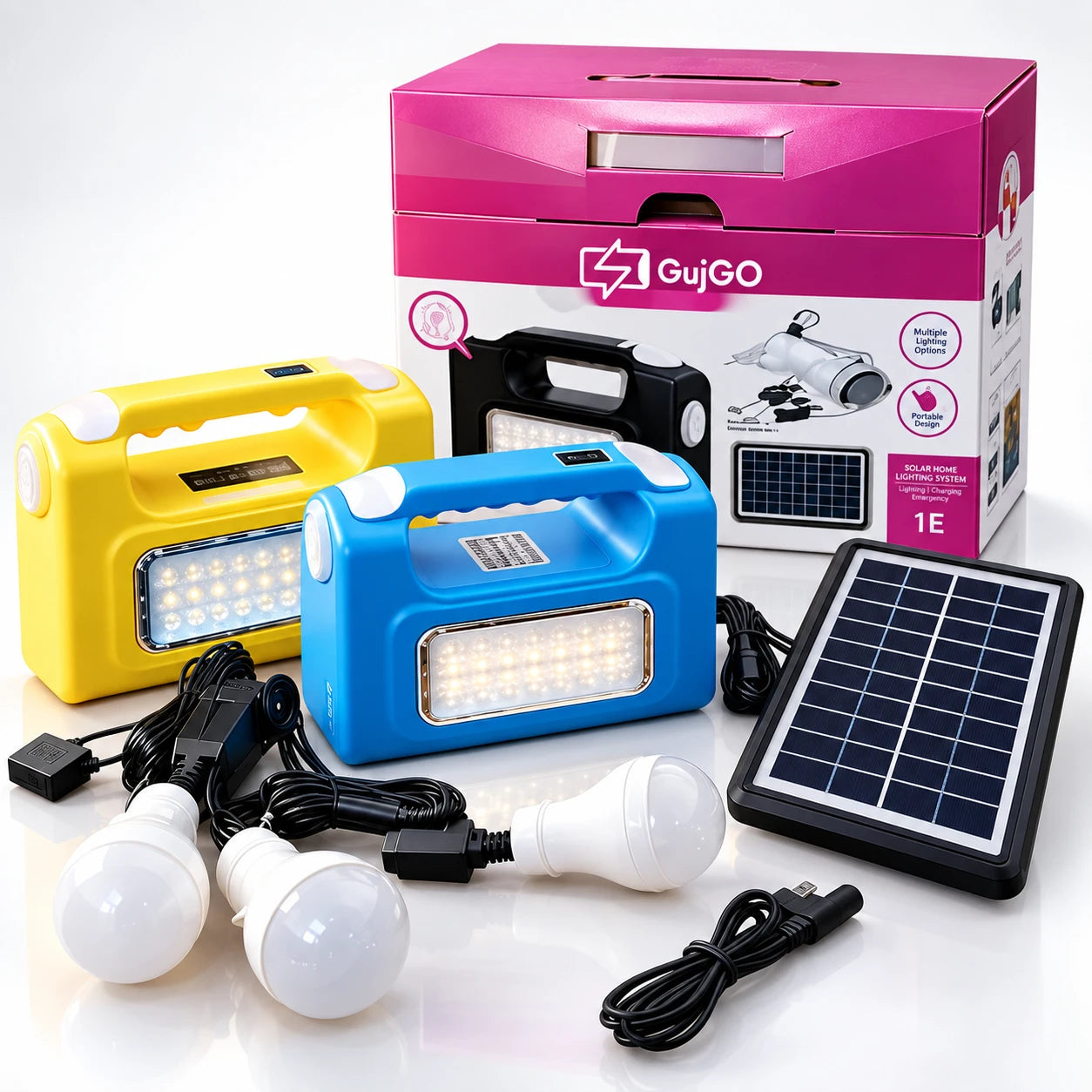

📦 Package Contents

• 1 × Solar Panel

• 1 × Power Control Unit

• 2–3 × LED Bulbs with cables

• 1 × USB Charging Cable

• 1 × Connection Kit

• 1 × User Manual

📐 Dimensions & Weight

• Power Unit Weight: ~800g – 1.2kg

• Solar Panel Size: Approx. 20–30 cm

• Total Package Weight: ~1.5kg

🚀 Ideal Use Cases

• Rural & off-grid homes

• Emergency power backup

• Camping & travel

• Street vendors & small shops

• Disaster relief kits
